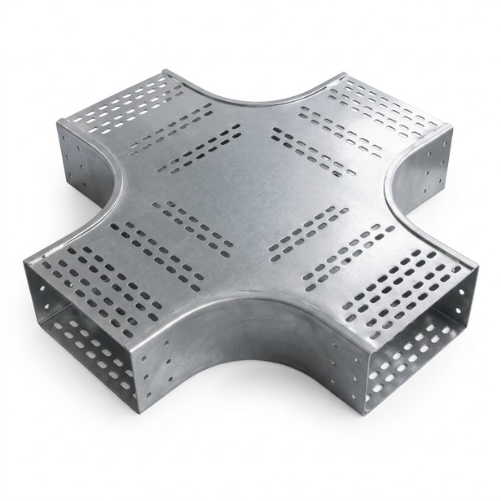

HORIZONTAL CROSS
ROYSONS is a leading manufacturer and supplier of high-precision Horizontal Crosses, headquartered at its registered office in Kolkata, West Bengal, India. Precision-engineered for complex four-way cable tray intersections, our Horizontal Crosses facilitate smooth 90-degree lateral branching across horizontal planes in all four directions. Designed to maintain safe cable bending radiuses and prevent conductor stress, ROYSONS Horizontal Crosses deliver uniform structural support, simplified multi-directional distribution, and long-term protection for heavy power and data cable networks in demanding industrial and commercial environments.
Seamless 4-Way Cable Routing
Enables efficient four-way 90-degree lateral intersections, allowing main cable trunks to branch out smoothly in all four horizontal directions without structural bottlenecks.
Heavy-Duty Materials & Finishes
Fabricated from Hot-Dip Galvanized Steel, Stainless Steel, or Marine-Grade Aluminum to resist corrosion, chemical exposure, and atmospheric weathering in harsh environments.
Rapid Field Jointing & Alignment
Designed with factory pre-punched connector slots on all four junction points for quick, precise splice-plate connection with straight cable tray runs on site.
ADVANCED PRODUCT CAPABILITIES
Multi-Directional 4-Way Junction
Engineered for four-way 90-degree lateral intersections, allowing cable runs to seamlessly cross and branch in all horizontal directions across complex layouts.
Curved Bending Radius Protection
Designed with factory-smooth radius corners at all four inner intersections, protecting high-voltage cables from mechanical tension and outer jacket abrasion.
High-Grade Industrial Finishes
Fabricated from Hot-Dip Galvanized Steel, Stainless Steel, or Structural Aluminum to deliver maximum resistance against moisture, salt fog, and chemical fumes.
Pre-Punched Splice Jointing
Includes factory-aligned side flange holes on all four extension arms, ensuring rapid alignment and secure bolting with main straight cable tray runs.
NEMA & IS Engineering Standards
Manufactured in strict compliance with NEMA VE 1 and relevant IS standards, ensuring uniform load bearing and reliable earth continuity across power networks.
TECHNICAL SPECIFICATIONS
| Specification Parameter | Technical Details & Standard Values |
|---|---|
| Product Category | Cable Tray Fittings & Accessories |
| Fitting Type | Horizontal Cross (4-Way Junction / Intersection) |
| Manufacturer & Supplier | ROYSONS (Reg. Office: Kolkata, West Bengal, India) |
| Material Options | Hot-Dip Galvanized Iron (HDGI), Pre-Galvanized Steel, Stainless Steel (SS304 / SS316), Marine-Grade Aluminum, Powder Coated Steel |
| Compatible Tray Types | Ladder Type, Perforated Trough, Solid Bottom, and Channel Cable Trays |
| Tray Width Compatibility | 50 mm to 1000 mm (Custom Widths Available on Request) |
| Side Rail / Flange Height | 50 mm, 75 mm, 100 mm, 125 mm, and 150 mm options |
| Material Thickness | 1.2 mm to 3.0 mm Heavy-Duty Gauge Sheet Metal |
| Intersection Angle | 90° Four-Way Lateral Cross Branching |
| Standard Bending Radii | 300 mm, 450 mm, 600 mm, and 900 mm (Custom Radii Available) |
| Galvanization Coating Thickness | Hot-Dip Galvanized to 65–85 µm (ASTM A123 / IS 4759 Standards) |
| Jointing & Splice System | Pre-punched connector flange slots for rapid bolt-and-nut coupling |
| Corrosion Resistance Standard | ASTM B117 Salt Spray Certified for Coastal and Heavy Industrial Duty |
| Electrical Continuity & Grounding | Low-resistance bonding (< 0.0003 Ω/m continuity) for safe fault current transfer |
| Manufacturing Standards Compliance | NEMA VE 1 / CSA C22.2 No. 126.1 / IS 1079 & IS 2629 / ISO 9001:2015 |
| Industrial Applications | Thermal & Solar Power Plants, Oil Refineries, Petrochemicals, Steel & Cement Plants, Offshore Marine Rigs, Infrastructure & Commercial Complexes |
