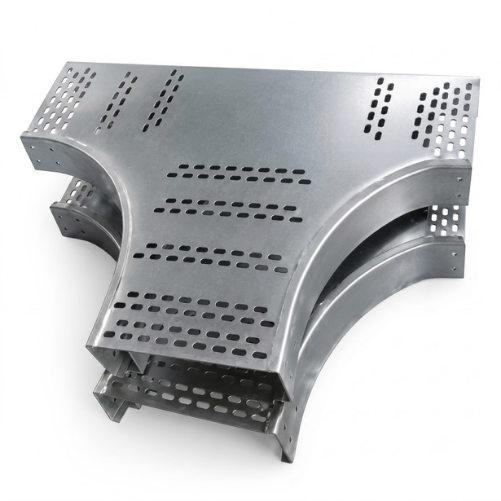

HORIZONTAL TEE
ROYSONS is a leading manufacturer and supplier of high-precision Horizontal Tees, headquartered at its registered office in Kolkata, West Bengal, India. Engineered for seamless three-way cable tray intersections, our Horizontal Tees facilitate safe 90° branch runs from the main cable trajectory across horizontal planes. Designed to prevent cable strain and maintain optimal bending radiuses, ROYSONS Horizontal Tees ensure uniform structural support, simplified wiring distribution, and reliable protection for power and data networks in complex industrial and commercial installations.
Seamless 3-Way Routing
Enables smooth 90-degree lateral branching from main cable trunk lines, eliminating sharp corners and maintaining continuous support for complex cable distributions.
Heavy-Duty Materials & Finishes
Fabricated from Hot-Dip Galvanized Steel, Stainless Steel, or Marine-Grade Aluminum to resist corrosion, chemical fumes, and harsh environment exposure.
Fast & Accurate Jointing
Engineered with factory pre-punched connector slots on all three junction points for quick splice-plate alignment with straight cable tray runs on site.
ADVANCED PRODUCT CAPABILITIES
Precision 3-Way Branch Junction
Engineered to create seamless 90-degree lateral branch connections from main feeder runs, enabling organized multi-directional cable routing across horizontal planes.
Controlled Cable Bending Radius
Features smooth, precision-curved side rails at all intersection points to prevent sharp edge snagging, cable jacket stress, and insulation degradation.
Heavy-Duty & Weather-Resistant Build
Manufactured from Hot-Dip Galvanized Steel, Stainless Steel, or Marine-Grade Aluminum to provide robust protection against atmospheric oxidation and industrial fumes.
Effortless Field Jointing
Equipped with factory pre-punched connector slots on all three extension arms, ensuring fast, accurate alignment and bolting with straight tray sections.
NEMA & IS Engineering Standards
Designed in full compliance with NEMA VE 1 and IS specifications, guaranteeing maximum structural integrity and grounding continuity under full load conditions.
TECHNICAL SPECIFICATIONS
| Specification Parameter | Technical Details & Standard Values |
|---|---|
| Product Category | Cable Tray Fittings – Horizontal Tee (3-Way Junction) |
| Manufacturer & Supplier | ROYSONS (Reg. Office: Kolkata, West Bengal, India) |
| Fitting Configuration | Horizontal Equal Tee / Horizontal Reducing Tee |
| Branch Angle | 90° Lateral Horizontal Branching |
| Bending Radius Options | 150 mm, 300 mm, 450 mm, 600 mm, and 900 mm Standard Radiuses |
| Material Options | Hot-Dip Galvanized Mild Steel, Stainless Steel (SS304 / SS316), Aluminum Alloys, and Pre-Galvanized Steel |
| Width Range | 50 mm to 1000 mm (Matches Standard Main & Branch Cable Trays) |
| Side Rail / Flange Height | 50 mm, 75 mm, 100 mm, 125 mm, and 150 mm options |
| Material Thickness | 1.5 mm to 3.0 mm Heavy-Duty Gauge Options |
| Surface Finish Options | Hot-Dip Galvanized (IS 2629 / ASTM A123), Powder Coated, Anodized, or Mill Finish |
| Tray Compatibility | Ladder Type, Perforated Trough, and Solid Bottom Cable Tray Systems |
| Jointing & Connection | Pre-punched Side Flange Connector Slots for Fast Splice-Plate Alignment at All 3 Endpoints |
| Load Bearing Class | NEMA Class 8A, 12B, 12C, 20B, and 20C (Matches Cable Tray System Rating) |
| Operating Temperature Range | -40°C to +150°C (Material & Finish Dependent) |
| Manufacturing Standards Compliance | NEMA VE 1 / IS 2629 / IS 1079 / CSA C22.2 No. 126.1 & ISO 9001:2015 |
| Industrial Applications | Power Generation Plants, Industrial Factories, Oil & Gas Refineries, Multi-Level Commercial Infrastructures, Substation Networks, and Data Centers |
